Enrico Puglisi Tarantula Hairy Legs BrushIntroduction
In the ever-evolving field of radio frequency (RF) engineering, collaboration between academia and industry plays a crucial role in advancing technology. A shining example of this is the recent successful testing of a 2.4 GHz T-shaped PCB antenna. This remarkable project, a collaborative effort between the esteemed professors of Sharda University, the innovative minds at Synergy Telecom Pvt. Ltd., and the industry-leading expertise of Antennix, has yielded impressive results in the field of antenna testing.
The rigorous testing process involved comprehensive Voltage Standing Wave Ratio (VSWR) measurements and detailed S11 Parameter (Return Loss) analysis, confirming the antenna’s efficiency and reliability. In this blog, we will walk you through the testing process, the key findings, and the significance of this collaboration.
The Antenna Testing Process
1. Overview of the 2.4 GHz T-Shaped PCB Antenna
The antenna in focus is a 2.4 GHz T-shaped PCB antenna, designed to deliver optimal performance across a range of frequencies. This antenna was meticulously designed by the professors at Sharda University, leveraging their deep expertise in RF engineering.
- Antenna Model: 2.4 GHz T-shaped PCB antenna
- Design Lead: Sharda University Professors
- Prototype Manufactured By: Synergy Telecom Pvt. Ltd.
2. Testing Setup and Equipment
The testing was conducted at Synergy Telecom Pvt. Ltd. using state-of-the-art equipment to ensure accuracy and reliability.
Test Date: August 1-5, 2024
Test Location: Synergy Telecom Pvt. Ltd. (Vikaspuri, New Delhi)
Testing Equipment:
- Vector Network Analyzer (VNA)
- Load
- Antenna
- Cable
Testing Procedure:
- Connection to VNA: The antenna was connected to the Vector Network Analyzer to measure its VSWR and S11 parameters.
- Calibration: Calibration of the VNA was performed using standard calibration kits to ensure precision.
- Frequency Sweep: The antenna was tested across its operating frequency range.
- Data Collection: Multiple readings were taken to ensure accuracy and repeatability.
Key Findings from the Antenna Testing
Below are the crucial findings from the VSWR and S11 Parameter testing. These results affirm the antenna’s performance and its potential applications.

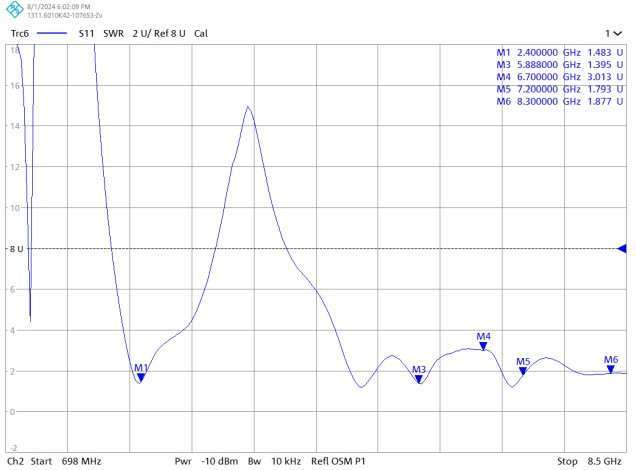

3. VSWR Measurement Results
The VSWR values were measured at various frequencies, with the goal of ensuring that they remained within the acceptable range of <2, which indicates minimal signal reflection and optimal performance.
| Frequency (MHz) | VSWR | Gain |
|---|---|---|
| 2.4 GHz | 1.4 | 1.8 |
| 5.8 GHz | 1.3 | 1.9 |
| 6.7 GHz | 3.0 | 3.5 |
| 7.2 GHz | 1.7 | 4.0 |
| 8.3 GHz | 1.8 | 4.8 |
VSWR readings confirm that the antenna performs exceptionally well within its designated frequency range, with values comfortably below 2.0, ensuring efficient signal transmission.

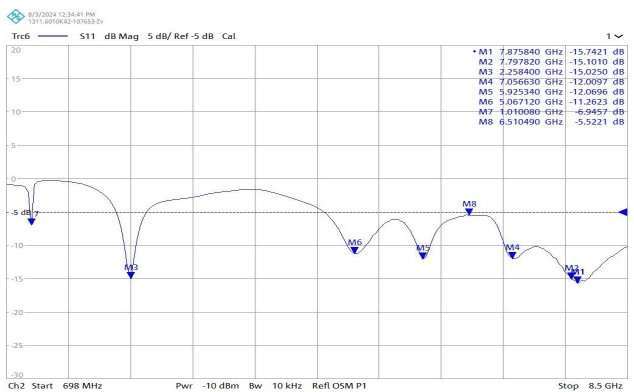

4. S11 Parameter (Return Loss) Analysis
The S11 Parameter was also measured across various frequencies to assess the antenna’s impedance matching and signal reflection properties.
| Frequency (MHz) | Return Loss (dB) | Gain |
|---|---|---|
| 7.87 GHz | -15.74 | 4.6 |
| 7.79 GHz | -15.10 | 4.65 |
| 2.25 GHz | -15.02 | 1.8 |
| 7.05 GHz | -12.00 | 4.0 |
| 5.92 GHz | -12.06 | 3.85 |
| 5.06 GHz | -11.26 | 3.5 |
| 1.01 GHz | -6.94 | 1.5 |
| 6.51 GHz | -5.52 | 4.2 |
The S11 Parameter readings indicate excellent return loss characteristics at higher frequencies, particularly at 7.87 GHz and 7.79 GHz, suggesting effective impedance matching and minimal signal loss.
5. Collaboration Success and Appreciation
The success of this antenna testing project is a testament to the power of collaboration. Sharda University’s professors brought their extensive knowledge in RF design to the table, creating a robust antenna prototype. Synergy Telecom Pvt. Ltd. played a crucial role in manufacturing the prototype and providing a sophisticated testing environment, ensuring that the antenna was evaluated with the utmost precision.
Antennix, as a key player in the RF industry, recognizes and appreciates the contributions of both Sharda University and Synergy Telecom. Their combined efforts have not only validated the antenna’s design but also paved the way for its potential deployment in various communication systems.
6. Importance of Regular Testing and Future Recommendations
Regular testing is essential to maintain the antenna’s performance within the acceptable VSWR range. It is recommended that future installations follow the same rigorous testing procedure to validate antenna performance consistently.
Conclusion
The 2.4 GHz T-shaped PCB antenna has passed all critical tests, demonstrating its efficiency and reliability for modern communication needs. The collaboration between Sharda University, Synergy Telecom, and Antennix exemplifies the synergy that can be achieved when academia and industry work together. This project not only highlights the technical prowess of the teams involved but also sets a benchmark for future antenna designs.
Antennix is proud to be associated with this successful venture and looks forward to further innovative collaborations that push the boundaries of RF engineering.
Acknowledgments
We extend our sincere appreciation to the dedicated professors at Sharda University for their exceptional design expertise and to Synergy Telecom Pvt. Ltd. for their meticulous testing and unwavering support throughout this project. Together, we have achieved a significant milestone in the field of RF engineering.
Recognizing the Leadership of Mr. Mudit Aggarwal and Contributions of Hazrat Ali
A project of this magnitude and technical complexity requires not only design and testing expertise but also visionary leadership and meticulous documentation. At the forefront of this successful endeavor are Mr. Mudit Aggarwal and Hazrat Ali of Synergy Telecom Pvt. Ltd.
Mr. Mudit Aggarwal, the CEO of Synergy Telecom Pvt. Ltd., exemplifies exceptional leadership and is the driving force behind this project. His extensive knowledge in RF, business, and computer science, combined with a modern and forward-thinking approach, has been pivotal in steering this project to success. Mr. Aggarwal’s commitment to staying ahead of new technologies and innovations, coupled with his dedication to excellence, provided the foundation for this collaboration. His role as a supportive mentor and skilled businessman has been instrumental in guiding young talent and pushing the boundaries of what’s possible in the telecommunications industry.
Mr. Mudit Aggarwal’s visionary leadership continues to shape the future of Synergy Telecom, and his ability to balance professional achievement with a genuine passion for continuous learning and growth reflects the qualities of an outstanding leader and mentor. His support and guidance were crucial in making this project a reality, ensuring its success and setting a high standard for future endeavors.
Hazrat Ali, a key member of Synergy Telecom, played an instrumental role in the technical aspects of the project. His diligent efforts in conducting the tests, compiling data, and preparing a comprehensive report have been invaluable. Hazrat Ali’s meticulous work in analyzing the Voltage Standing Wave Ratio (VSWR) and S11 Parameter (Return Loss) measurements ensured that all findings were recorded with precision and accuracy. His detailed report, attached as a reference, serves as a vital resource for understanding the 2.4 GHz T-shaped PCB antenna’s capabilities and will guide future implementations and developments.
Together, the contributions of Mr. Mudit Aggarwal and Hazrat Ali have been essential in validating the performance of the 2.4 GHz T-shaped PCB antenna, ensuring its reliability in our communication systems. Their combined efforts have not only driven this project forward but have also set a high standard for excellence in the telecommunications industry.
